iCopy-X100 SMART CARD REPLICATOR

User Manual

User Manual

1．  Power supply mode

Open the battery compartment on the back of the product, install 4 AAA alkaline dry batteries, or use a USB Type C data cable to connect to a 5V power source for power supply (do not use chargers with a voltage greater than 5V).

2． ON/OFF

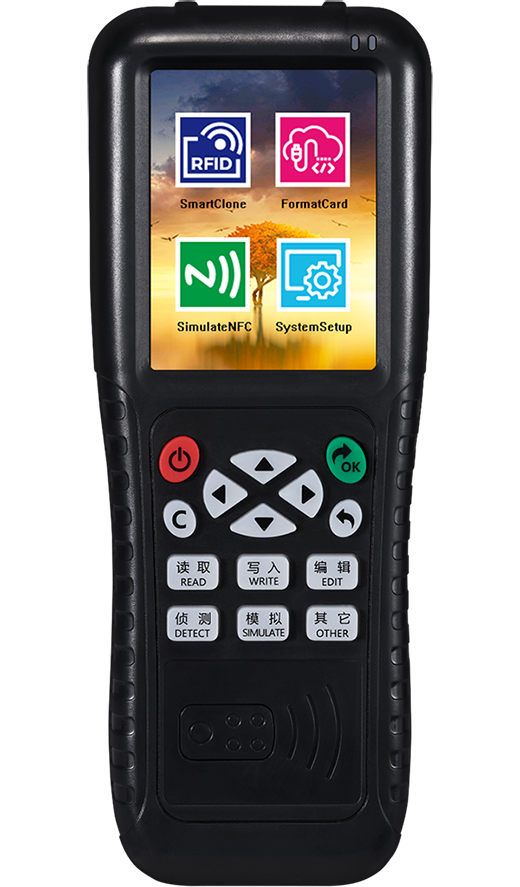

After the product is powered on, press the  button to turn it on/off (please select language for first use). After turning it on, enter the disclaimer page (please strictly follow the disclaimer regulations). After reading it clearly, press the button to enter the menu interface.

3． Copy card

1、 Enter the [SmartClone] function and place the card in the sensing area on the back of the product.

2、 Press the "READ" button to automatically read the recognition card model. When encountering the prompt "There is an encrypted sector, please connect to the computer and use decryption software to decrypt." Please follow the "Copy Encrypted IC Card" operation.

Note: When displaying other frequency cards that are not 125KHz, it is recommended to move the card 1cm away from the sensing area and read it again for confirmation to eliminate misjudgment.

3、 According to the successful reading prompt (frequency, model), replace the corresponding blank copy card and place it in the sensing area on the back of the product. Press the "WRITE" button and wait for the successful writing prompt.

Note: When encountering a write failure, please adjust the position and distance between the card and the sensing area, and try writing the card again.

4． Copy encrypted IC card (M1 card)

1、        Turn on the product, press the  button to enter the main menu interface, and connect the product to the computer/phone using a USB Type C data cable.

2、        Open the "CopyKey Manager" software on your computer or the "CopyKeyNFCTools" app on your phone, and confirm that the software is successfully connected to the product.

3、        Place the IC card in the product sensing area (both front and back sensing areas are available), click the "one click decoding" button on the software, and start automatic analysis and decryption. Wait for the prompt to decrypt successfully.

4、        Replace the corresponding IC blank copy card to the product sensing area, press the "WRITE" button on the product, and wait for the successful write prompt.

Note: For information on obtaining software for computers or mobile devices, please refer to "Connecting Computer Software" and "Connecting Mobile APP" below.

5． M1 Card formatting

1、        Enter the [FormatCard] function and place the M1 (IC) card that needs to be formatted in the induction area (both front and rear induction areas are available).

2、        Select the "QUICK FORMAT" or "FORMATTING" button and wait for the prompt indicating successful formatting.

Function introduction: It will reset all data blocks on the M1 (IC) card to zero and restore the key blocks to the default FF FF FF FF FF 07 80 69 FF FF FF FF FF FF FF FF FF FF.

Typical applications:

Application A: After formatting the CUID card that has written data, other encrypted data can be written again to achieve the function of reuse.

Application B: In NFC mobile phone/bracelet simulation encryption IC card operation, if using a CUID card as an intermediary card, the CUID card needs to be formatted first to ensure successful addition.

6． NFC simulation (adding encrypted IC card to mobile phones or wristbands/watches with NFC function)

Currently, only Android or HarmonyOS phones with NFC function support analog encrypted IC access cards, while unsupported phones can use anti metal card stickers. The following content will refer to NFC enabled mobile phones or wristbands/watches collectively as NFC devices.

During operation, the product may automatically shut down due to idle timeout. Solution: You can use USB power supply or set: SystemSetup ->Power Settings ->No Automatic shutdown.

1、        Read original card data: Enter the [SimulateNFC] function, place the IC card in the product sensing area (both front and rear sensing areas are available), press the "READ" button to read the original IC card, and wait for the prompt to read successfully.

Note: When prompted "Encrypt card, please connect to the computer first to decrypt." Please follow the "Copy Encrypted IC Card" operation to decrypt first.

2、        Creating intermediary cards: Remove the original card from the sensor and replace it with a UID or CUID card (if using a CUID card, please format the CUID card first). Press the "WRITE" button and wait for the prompt indicating successful card writing.

3、        Open the app for NFC access card function on your phone (most NFC phones are wallet apps or apps connected to corresponding NFC devices), select the simulated physical access card function, follow the app prompts, and place the intermediary card obtained from the previous operation in the sensing area of the NFC device to complete the simulated addition. Please set the card as the default card.

Note: The operation of different models of NFC devices may vary, but as long as the NFC device can generate a blank analog card with the original card number, it is sufficient.

4、        Align the sensing area of the NFC device with the sensing area of this product (both front and rear sensing areas are acceptable), press the "SIMULATE" button to automatically write the complete encrypted data, and wait for the prompt to write successfully.

Note: Different NFC devices have different sensing areas. Please locate the sensing area, adjust the position and distance, and then press the "SIMULATE" button multiple times until the writing is successful.

After completing the above simulation operation, the door cannot be opened and used normally. Please read the simulation card data on the original card and NFC device separately through computer or mobile software, and compare whether the data is the same:

Only the 8-byte data after block 0 is different, it can be confirmed that the above steps 1-4 were successful. There may be two possible reasons.

Reason A: The access control device is incompatible with the NFC device, resulting in poor sensing effect. Unable to solve, can only give up.

Reason B: The access control device recognized a manufacturer code of 0 blocks. Due to the current inability to modify the manufacturer code of the NFC device's analog card, it cannot be resolved and can only be abandoned.

There are other data differences besides the 8-byte data after 0 blocks. It can be confirmed that there is an issue with steps 1-4. Please try again to find the cause.

7． Connecting computer software (PC)

At present, only Windows system computers are supported. It is recommended to use Windows 7 and above versions, as Windows XP may have some compatibility issues.

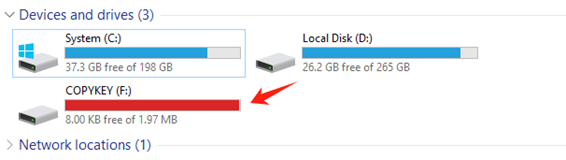

1、        Turn on the device, leave the product on the disclaimer page, connect the product to the computer via a USB Type C cable, and the computer will automatically load the COPYKEY USB device.

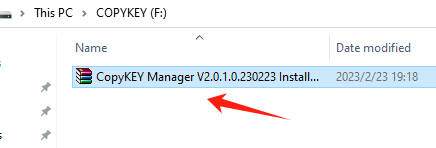

2、        Open the USB drive to access the "CopyKey Manager" file. Please double-click the file and follow the prompts to install it. After installation, double-click theoftware icon on the computer desktop to open the software. The bottom left corner of the software displays "Storage Mode" on my device.

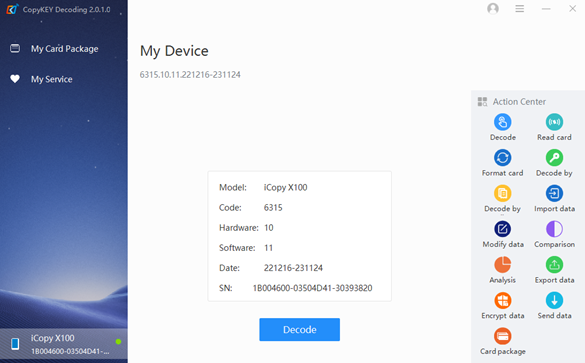

3、        At this point, you need to press the  button of the product to enter the main menu interface. The computer software will automatically connect to the device, and you can select the function buttons on the software to perform more operations.

There is also a download link for Windows PC software:

Download from Baidu Netdisk:

      https://pan.baidu.com/s/1H5n22UURW4eAEEt3aPJuJA?pwd=cs4e Extract code: cs4e

      Download from Lanzuo Cloud：https://wwt.lanzout.com/b03715sid  Password:1234

      From official download：http://app.copykey.hyctec.cn/Soft/

8． Connect to mobile app

The current mobile end only supports Android or HarmonyOS systems, using versions based on Android 7 and above.

Android mobile app download link:

     Download from Lanzuo Cloud: https://wwvl.lanzout.com/b036x4r1a Password:1234

     From official download: http://app.copykey.hyctec.cn/

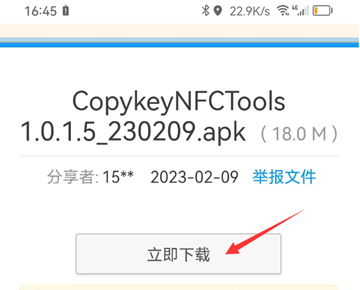

1、        Copy one of the links above and open it in your mobile browser, download and install the latest version of the app.

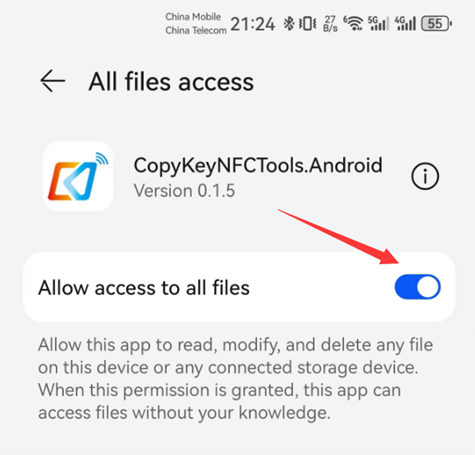

2、        Open the installed app and make sure to select Allow when the phone pops up a storage permission request.

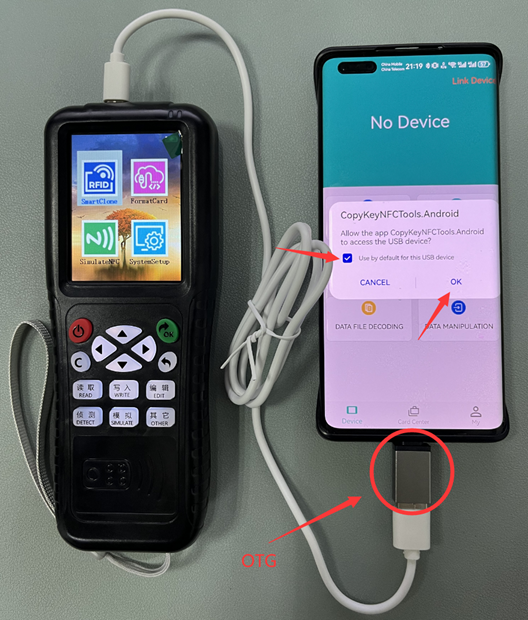

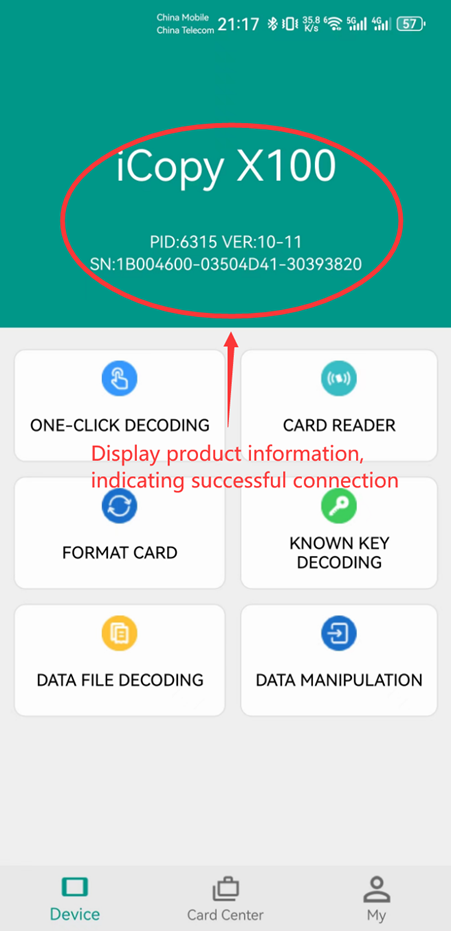

3、        Connect this product to your phone through a USB Type C data cable and an OTG converter (note that the OTG converter must be plugged into your phone). After turning on the product, press the  button to enter the main menu interface. The app will pop up a USB device selection option. Please check the default option and confirm. After completing the connection, you can select the function buttons on the app to perform more operations.

9． Product parameters

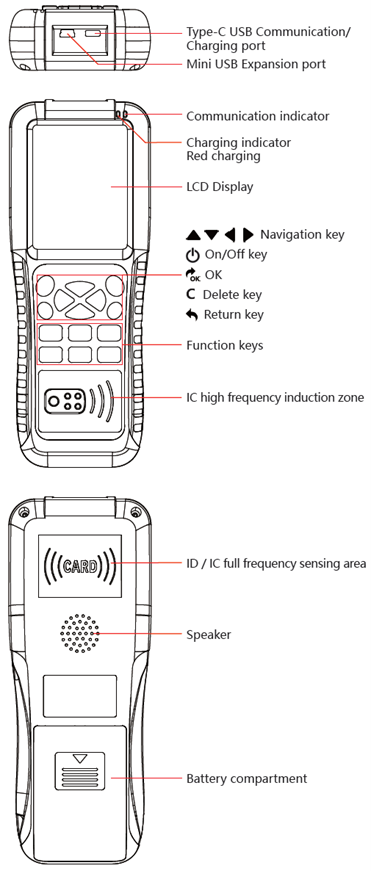

 10．  Product diagram

11． More information

1、        Use your phone to scan the QR code on the back label of the product or scan the QR code below to access the relevant page.

2、        Follow the WeChat official account.
